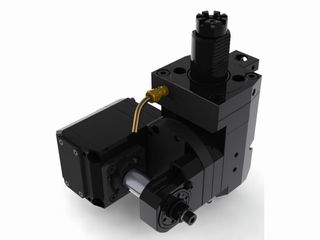

◎ VDI50-MT Radial Swivel Gear Hobber Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ For left hand and right hand turret.
◎ Cutting angle can be set from +20 to -20 degree for various applications.
◎ Suitable for machining Spur Gear and Bevel Gear.
◎ Gear Ratio：2.76：1
◎ Input R.P.M.：Max. 4,000 RPM

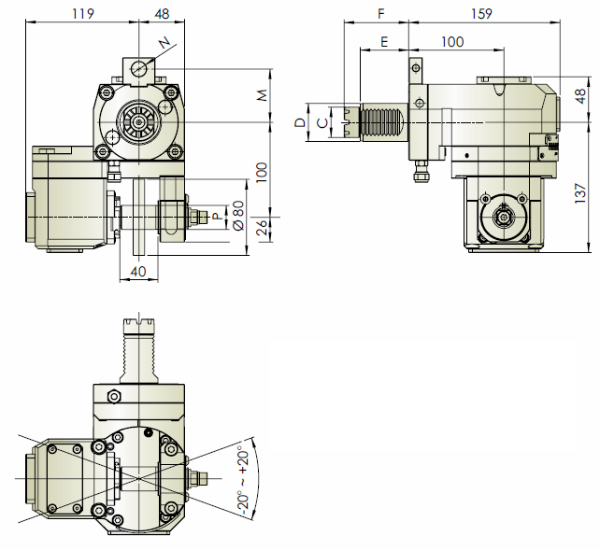

| Model No. | C | D | E | F | M | N | P | N.W. (KG) |
| THB-T29.100-50D | 40 | 50 | 68 | 92 | 70/88 | 18 | 22/25.4/27/31.75 | 12.8 |
Unit:mm
