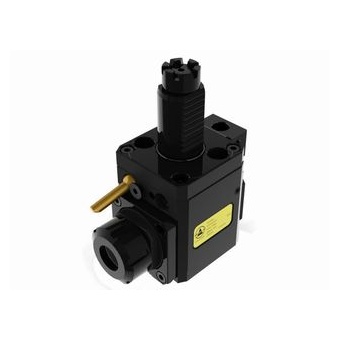

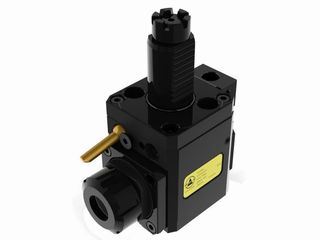

◎ VDI50-MT-ER40 Radial Driven Tool Holder 92mm
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM.
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM

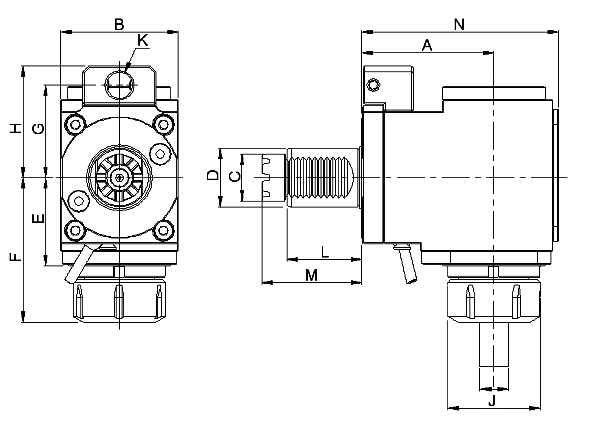

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B06.92-50D | 92 | 86 | 40 | 50 | 60 | 100 | 70/88 | 83/101 | ER40(4~26) | 63 | 18 | 68 | 84 | 136 | 9 |
Unit:mm
