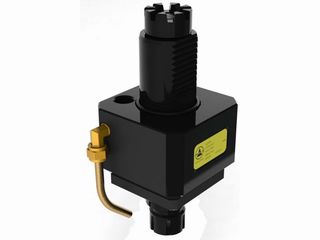

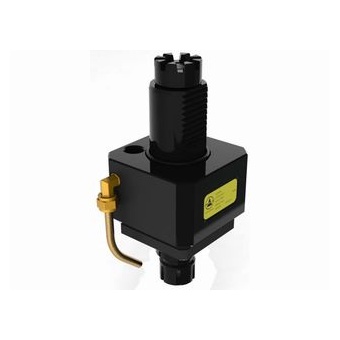

◎ VDI40-MT-TER20 Axial ER Tapping Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 3,000 RPM

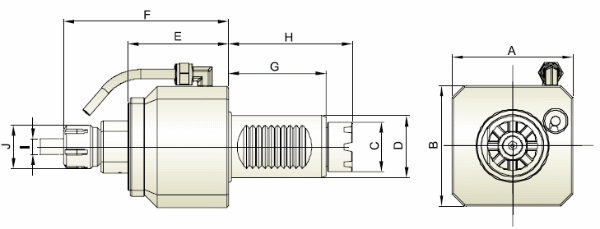

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A15-40D | 78 | 78 | 32 | 40 | 63 | 106 | 51 | 68 | M3~M12 | 34 | 3.1 |
Unit:mm
