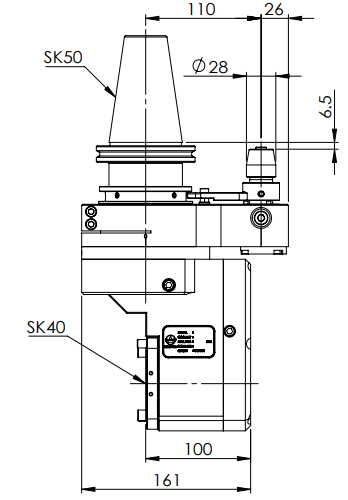

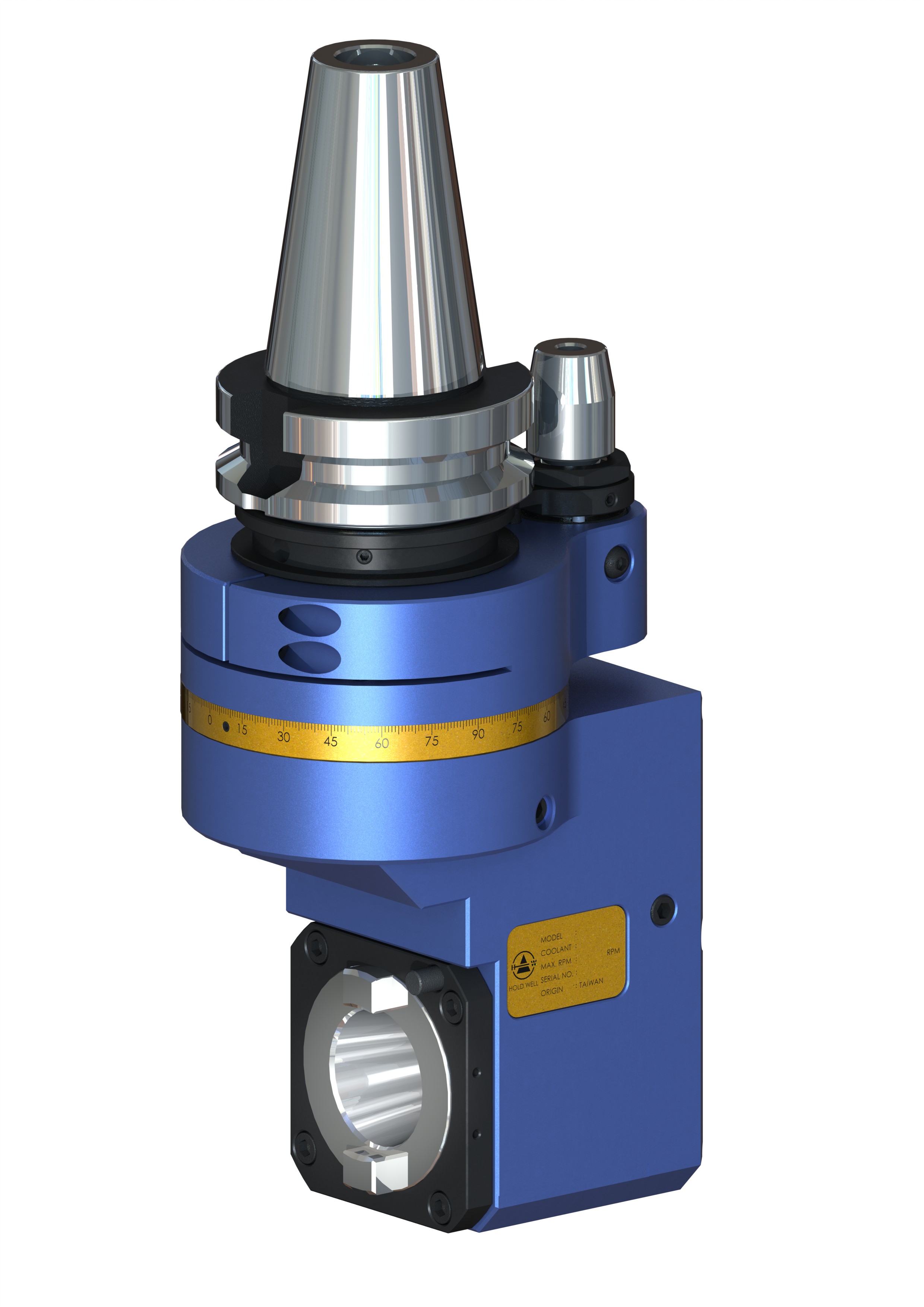

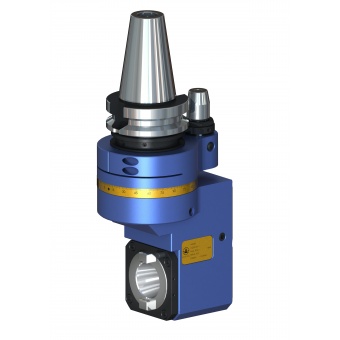

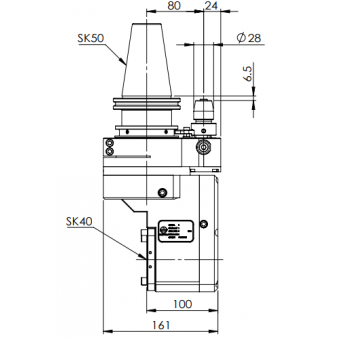

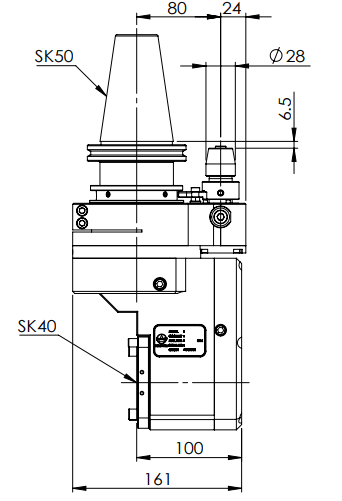

◎?SK50-SK40 90° Aluminum Offset Angle Head?(AHM Type)
◎?Run-out：0.002 mm?
◎?Material：Aerospace Aluminum Alloy / Alloy Steel
◎?R.P.M.：Max. 4000 RPM
◎?Torque : Max. 60 Nm
◎?Drilling : Max. 20 mm
◎?Tapping : Max. M16
◎?Gear Ratio：1：1
◎?Standard Accessory：Tool-Locking Plate, L Type Wrench
◎?Output Rotation : Same as Input Rotation
◎The output interface of Taper40 ensures wide-range application with various BT40/SK40/CAT40Tool Holder.
◎Offset design ensures compact body and largely eliminates interference.
◎Offset design eliminates the protrusion of tools and enhances working rigidity.
◎Special tool-locking design ensures easier tool engagement and release.
◎Can be automatic tool changed. Increases productivity.
◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
