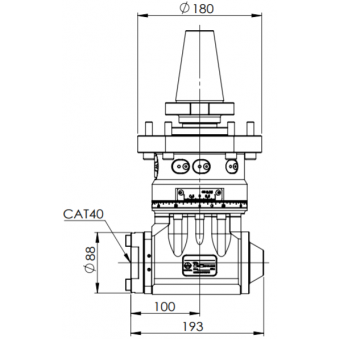

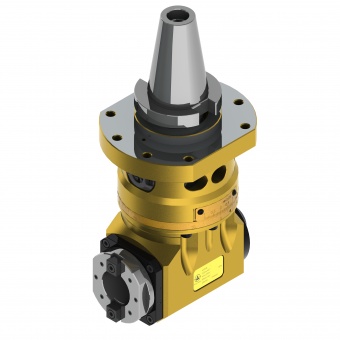

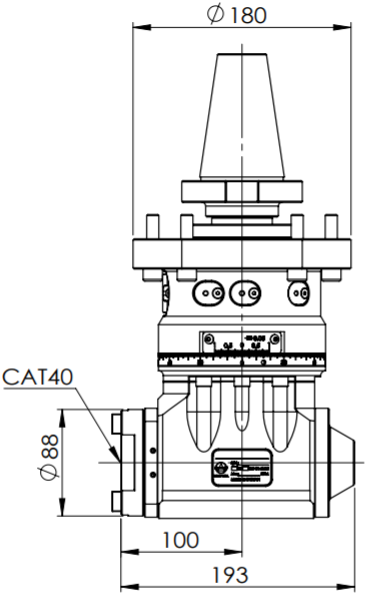

◎ CAT50-CAT40 Flange-Mounted Angle Head (VTC)(AHK Type)
◎ Run-out：0.002 mm
◎ Material：Alloy Steel
◎ R.P.M.：Max. 6000 RPM
◎ Torque：Max. 100 Nm
◎ Drilling：Max. 24 mm
◎ Tapping：Max. M18
◎ Gear Ratio：1：1
◎ Standard Accessory：Open End Wrench, L Type Wrench
◎ Output Rotation：Reverse to Input Rotation
◎?Can be applied on Vertical Turning Center, Plano Milling Machine and various machines with Adapter Plate.
◎?Built-in spindle positioning system. The flexible design of connection part which is suitable for various magazines makes the ATC application possible.
◎?Can be connected to tooth-shaped Flange Disc or any shape of Machine Spindle surface to reach Max. rigidity.
◎?Hardened precision spiral bevel gears ensure stable performance with long service life.
◎?Cutting direction can be adjusted from 0 ~ 360 degree.
