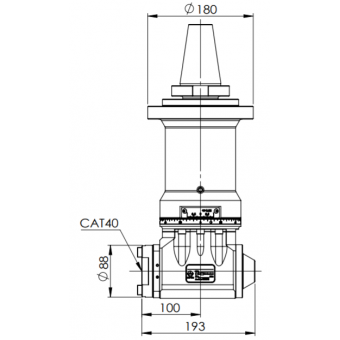

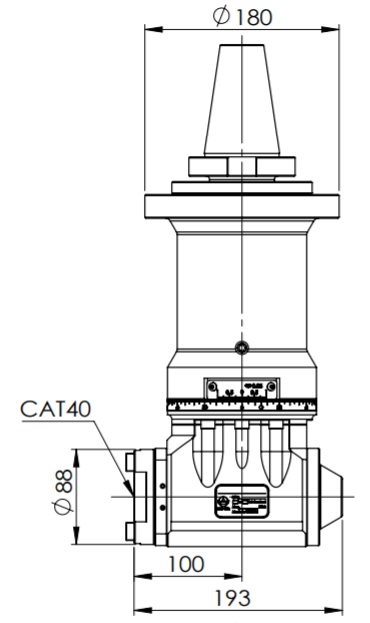

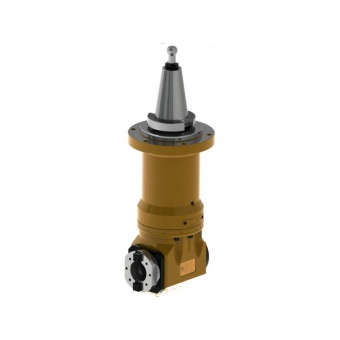

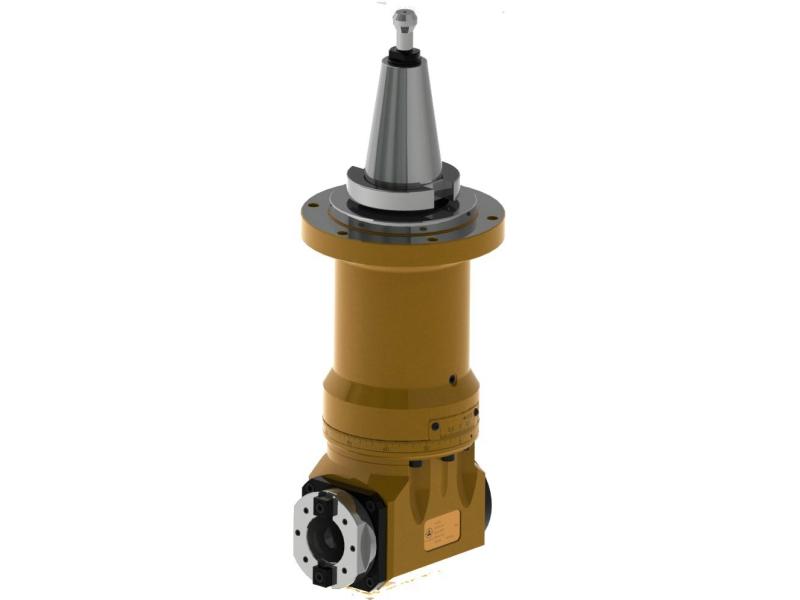

◎ CAT50-CAT40 Flange-Mounted Angle Head (AHK Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 6000 RPM
◎ Torque：Max. 100 Nm
◎ Drilling：Max. 24 mm
◎ Tapping：Max. M18
◎ Gear Ratio：1：1
◎ Standard Accessory：Open End Wrench, L Type Wrench
◎ Output Rotation：Reverse to Input Rotation
◎?The output interface of Taper40 ensures wide-range?application with various CAT40?tool holders.
◎?Mount directly on the machine spindle surface.?Rugged body construction for heavy duty cutting.
◎?Interchangeable among same taper machines by?changing the mounting plate.
◎?Hardened precision spiral bevel gears ensure stable?performance with long service life.
◎?Cutting direction can be adjusted from 0~360?degree.
